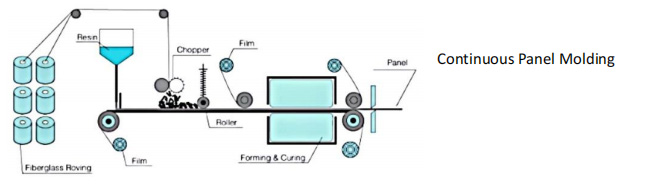

Continuous Panel Molding

• Resin mix is applied to a base film moving at constant speed and flattened to ensure uniform thickness, chopped fiber in specified length is distributed evenly onto the resin matrix (or fiberglass mat impregnated with resin mix), covered with a top film and moved into the curing oven.



Fiberglass Products for Continuous Panel Molding

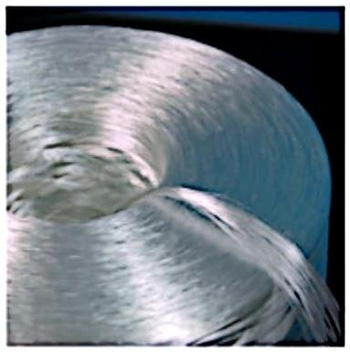

• Continuous Panel Roving

  【Description】

  Continuous panel roving is coated with silane-based sizing, compatible with UP, VE resins and is widely used to produce transparent, translucent panels and corrugated sheets.

• 【Properties】

  ◎Low static
  ◎Low lay-down
  ◎Fast wet-out
  ◎Good dispersion
  ◎High transparency



• Woven Roving

  Woven Roving is compatible with UP, VE, EP and PF resins. Woven Roving is available with a width range of 50mm~3,000mm and a weight range of 200g/㎡ 2-1,600 g/m2.Other specifications are also available on customer request

• 【Properties】

  ◎Warp and weft rovings aligned in a parallel and flat manner, resulting in uniform tension
  ◎Densely aligned fibers, resulting in high dimensional stability and making handling easy
  ◎Good moldability, fast and complete wet out in resins, resulting in high productivity
  ◎Good mechanical properties and high strength of composite parts.

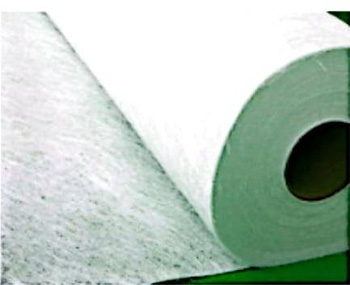

• Chopped Strand Mat

  【Description:】

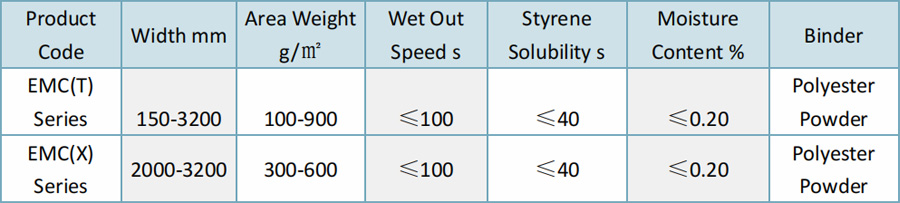

  Chopped Strand Mat is made of chopped fiber in specified length, randomly & evenly distributed on conveyor, bonded together by polyester powder binder and cut into certain widths & lengths after heat forming. It is compatible with UP and VE resins and is widely used to produce transparent, translucent panels and corrugated sheets.

• 【Properties】

  ◎Even area weight
  ◎Fast wet out and low resin consumption
  ◎Medium rigidity and high transparency



• 【Products】

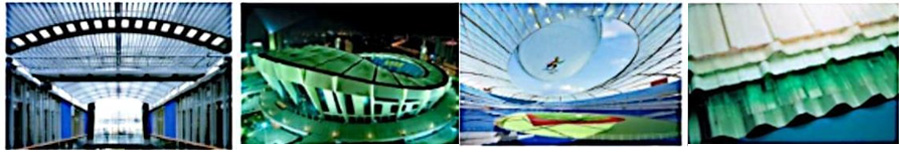

End-Use Markets





(Building and Construction/Automotive/Agriculture/Fibreglass Reinforced Polyester)




•
