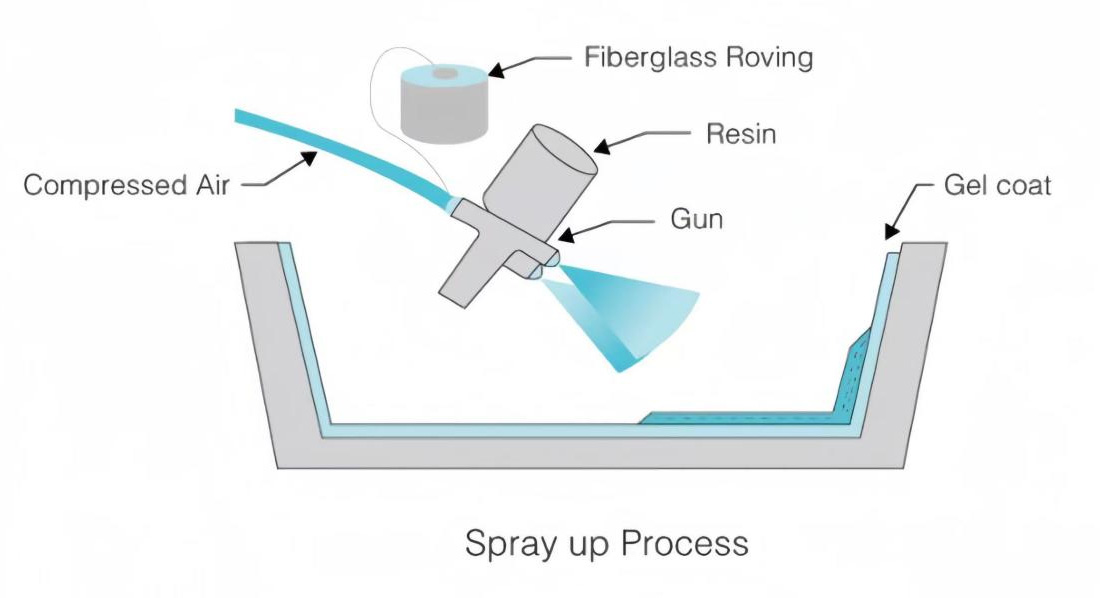

• Spray-up

  Fiberglass assembled roving is chopped & sprayed along with resin mix onto the open mould evenly，compressed for complete impregnation & air bubble removal and cured.



• Fiberglass Product for Spray-up

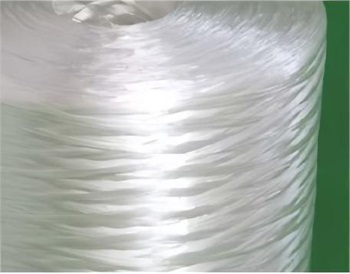

  Spray-up Roving

  【Description】

  Spray up roving is coated with silane-based sizing, compatible with UP, VE resins and widely used to produce sanitary devices and marine vessels

• 【Properties】

  ◎Consistent linear density
  ◎Low static & Fuzz
  ◎Good chop-ability and dispersion
  ◎Applicable for robotic operation

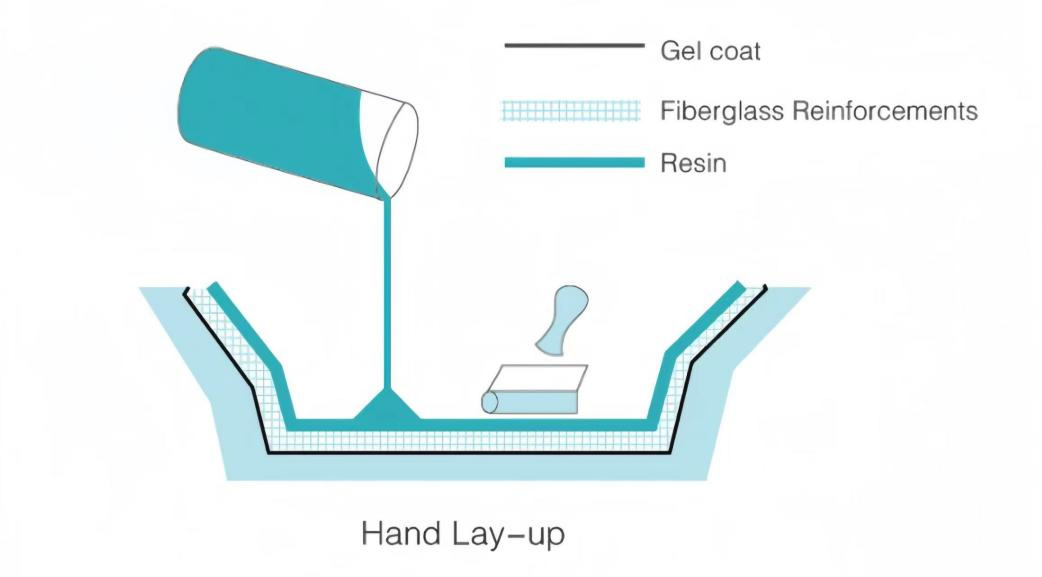

• Hand Lay-up

  Resin mix and fiberglass reinforcements (roving, woven roving or mat) are put into mold layer by layer, completely impregnated with air bubble removed, laminated to designed thickness and cured.

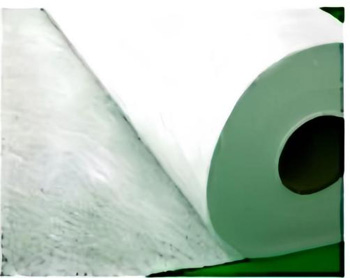

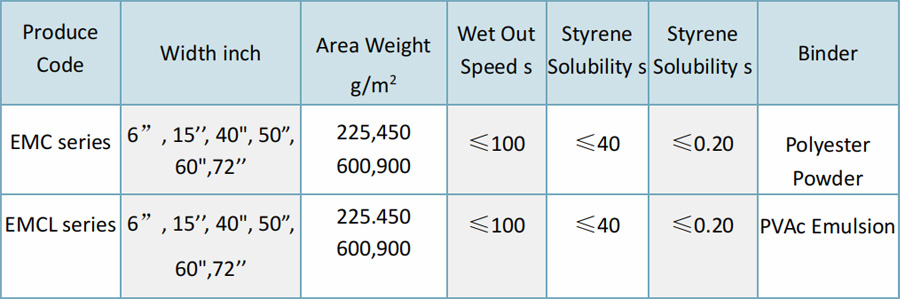

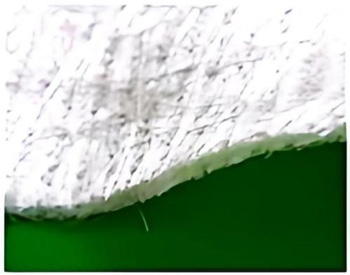

• Chopped Strand Mat

  【Description】

  Chopped Strand Mat is made of chopped fiber in specified length, randomly & evenly distributed on conveyor, bonded together by polyester powder or emulsion binder and cut into certain widths and lengths after heat forming. It is mainly applicable for hand lay-up process.

• 【Properties】

  ◎Even area weight
  ◎Fast wet out and low resin consumption
  ◎Medium rigidity and optimum molding



• 【Products】

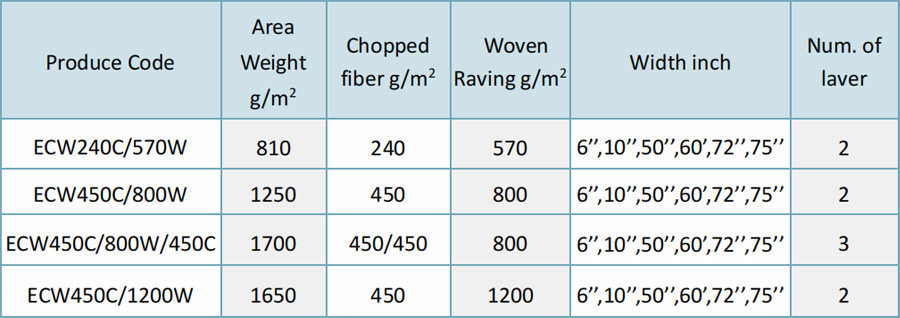

• Combo Mat

  【Description】





  Combo mat is made by stitching with polyester yarn one layer of chopped fiber onto woven roving, or one layer of chopped fiber on both side of woven roving. It is compatible with UP, VE resins, etc.

• 【Properties】

  ◎Even area weight
  ◎Fast wet out and low resin consumption
  ◎Medium rigidity and optimum molding performances



• 【Products】

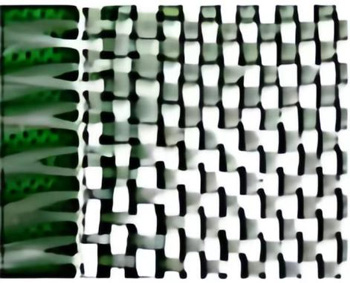

• Woven Roving

  【Description】




  Woven roving is made of looms by weaving direct roving into fabrics, including plain weave, twill weave, etc. it gives bi-directional (0°/90°) reinforcement, compatible with UP, VE & EP resin systems and is mainly used for hand lay-up process.

• 【Properties】




  ◎High mechanical strength of finished products
  ◎Even area weight
  ◎Fast wet-out
  ◎Flexible inputs of warp & weft



• [Products]

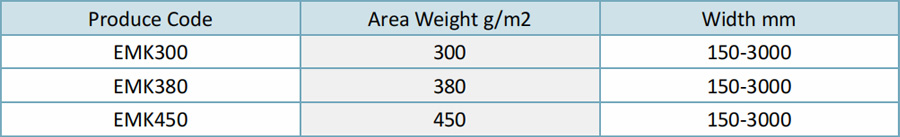

• Knitted Mat

  【Description】





  Knitted mat is composed of E-glass fiber chopped in specified length, randomly dispersed & stitched together by polyester yarn, and it is compatible with UP & EP resins.

• 【Properties】

  ◎ Free of any binder
  ◎Even thickness
  ◎Fast wet-out
  ◎Fast wet-out
  ◎Excellent isotropy of properties



• 【Products】

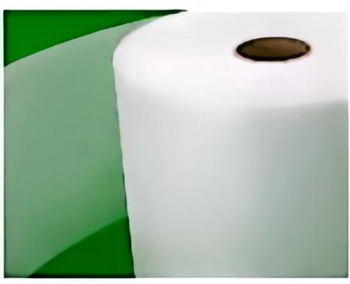

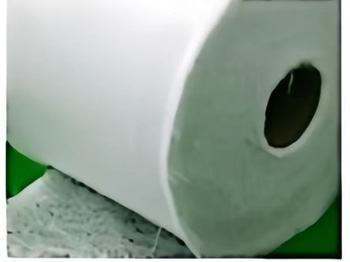

• Surface Mat

  【Description】





  Surface mat is used in the interior & exterior surface laminates of FPR/GRP, to improve the chemical corrosion resistance, appearance and extend the service life

• 【Properties】

  ◎Even distribution of fiber
  ◎Smooth and soft surface
  ◎Fast wet-out
  ◎Excellent molding property



• 【Products】



Vacuum Infusion & Vacuum Bagging process

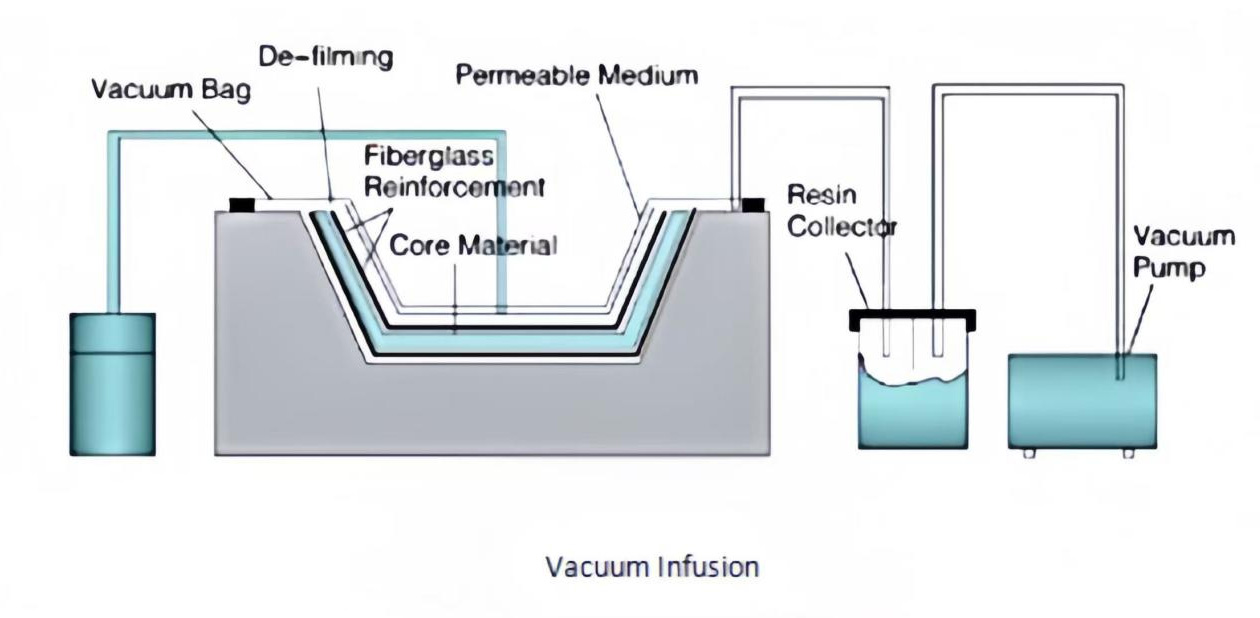

• Vacuum Infusion】

  Reinforcements (fiberglass, core materials etc., distinct from Vacuum Bagging) are laid onto the mold, then covered with the vacuum bag and tightly sealed, air is extracted completely from inside to create a vacuum enviment, where resin is driven through designed routes into & uniformly impregnate the reinforcement layers, to form the laminate products after curing and the vacuum bag removal.



• Vacuum Bagging process

  Impregnated reinforcements are laid and tightly sealed in between the mold and vacuum bag, then vacuum pumping is applied to remove the air and extra resin inside the reinforcements, to form more consolidated laminate products with higher mechanical properties. Vacuum Bagging is used for hand lay-up, spray up. prepreg (preforming) processes, etc., and can be applied with oven, autoclave, etc.

Fiberglass Product for Vacuum Infusion & Vacuum Bagging process

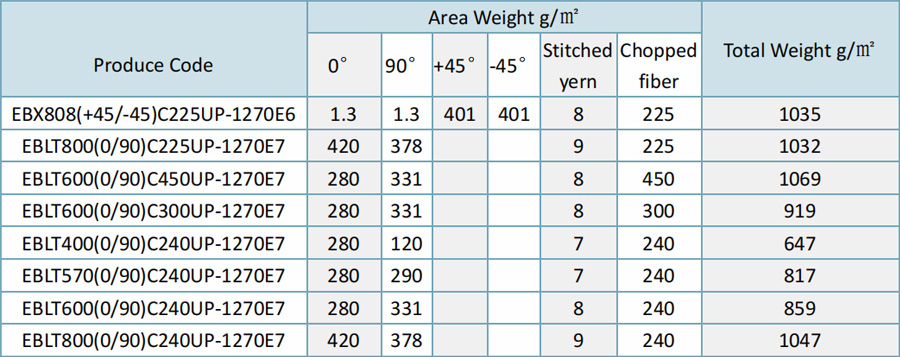

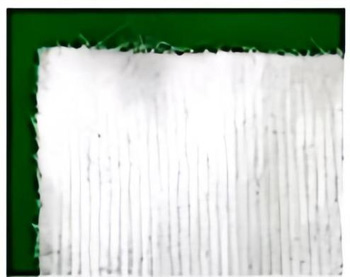

• Biaxial Fabrics

  【Description】





  Biaxial fabrics are none-crimp fiberglass reinforcements made on a warp knitting loom where fiberglass weft and warp are oriented at set angles by multiple layers and stitched-bonded.

• 【Properties】

  ◎Crimp-free construction and higher fabric strength
  ◎Excellent molding property and impregnation
  ◎Enhanced surface aesthetics of finished products and no print-through
  ◎Optimized composites directional fiber content

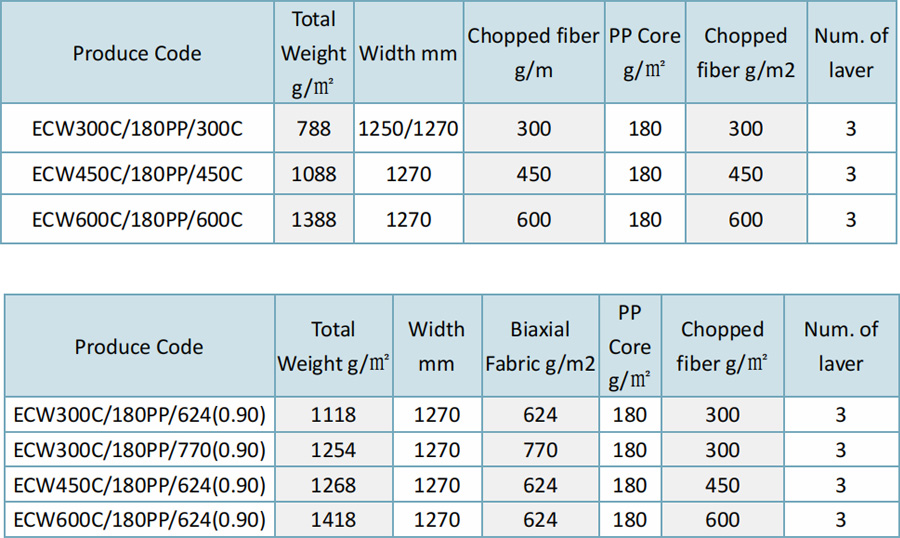

• Techcore Mat

  【Description】





  Techcore mat is a combination of a none-woven PP (polypropylene) core stitch-bonded between two or three layers of binder-free chopped fiber, bi-axial fabrics or woven roving, compatible with UP & EP resins and typically used to produce nacelle for wind energy.



• 【Properties】

  ◎Special resin conductive layer, high resin flow and fast curing;
  ◎Optimum thickness, less reinforcement placement and higher efficiency;
  ◎Capable for high part flexibility, multi-thickness and excellent part integrity

• 【Products】
