Electronic & Industrial Fiberglass Yarns

Application: Weaving, Plastic-coating, Knitting

Electronic & Industrial Fiberglass Yarns

• 【Description】

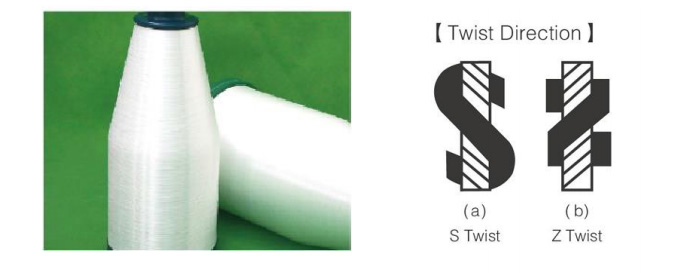

  Fiberglass yarn is categorized into: Single yarn & Plied yarn, in terms of manufacturing process; Starched-based, Silane-based & Starch-Silane based, in terms of sizing; Electronic Yarn and Industrial Yarn, in terms of application; It is widely used to produce electronic glass fabrics, tire cord, sleeves, grinding wheel fabrics, sun cloth, window gauze, filtering materials, three-dimensional woven fabric etc.





  starch-based sizing, easy for heat cleaning, typically used to produce glass fabrics and general purpose industrial products. silane based sizing, high tensile strength of filaments & high alkali resistance, compatible with EP, UP, VE and PF resins. starch-silane based sizing, excellent weaving properties and flexible for various industrial applications

• 【Properties】

  ◎Consistent linear density     ◎Good process-ability and low fuzz     ◎Easy for heat-cleaning     ◎High tensile strength

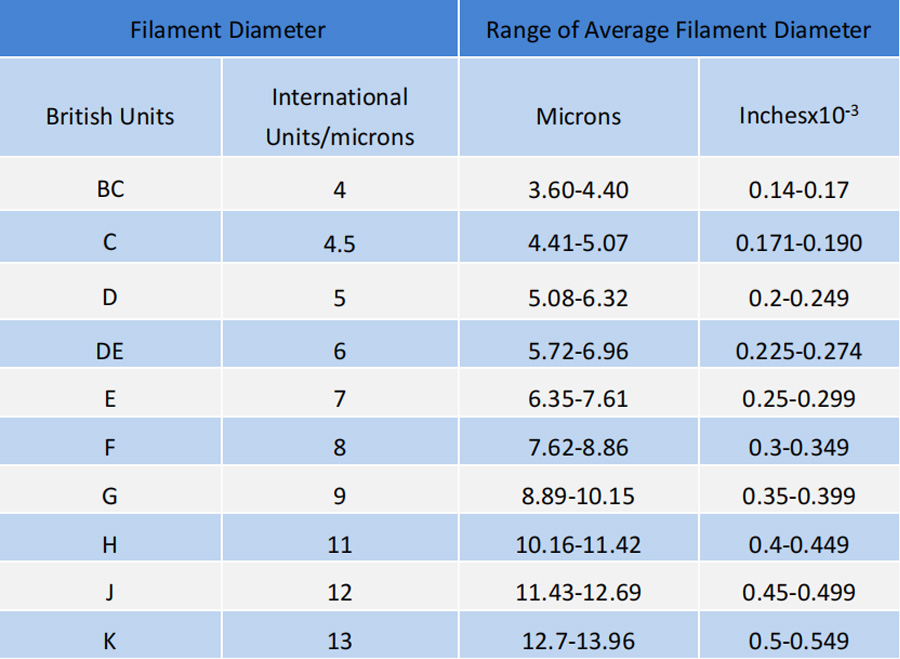

• 【Nomenclature for Yarn Filament Diameter】

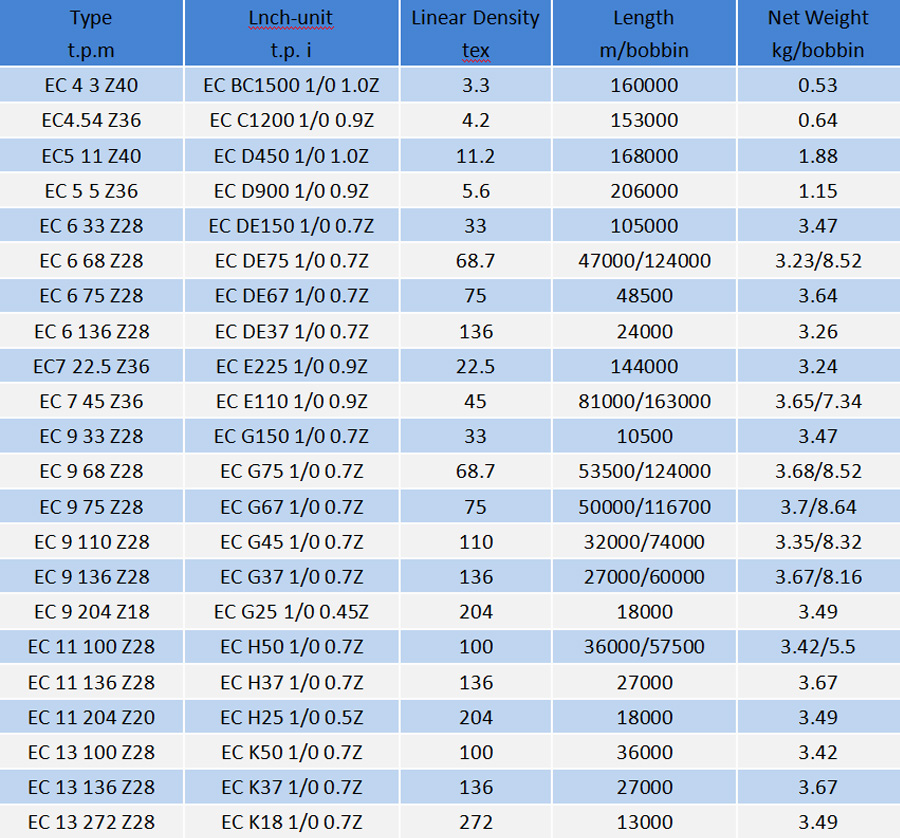

• Single Yarn

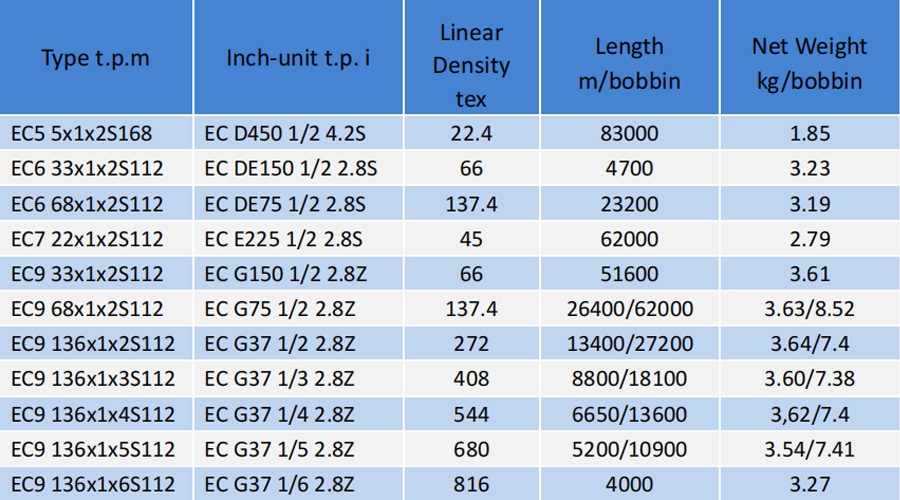

• Plied Yarn



• Number of single yams plied: 2~6, Twists of plied yarn: 90 ~150/m

• Packaging

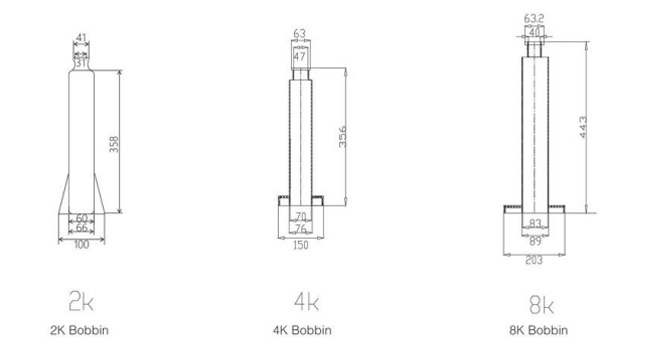

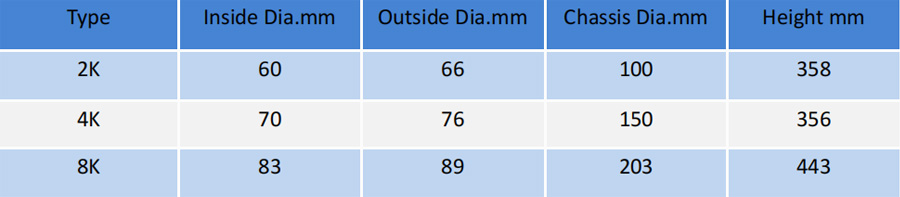

• 【Bobbin Specification】

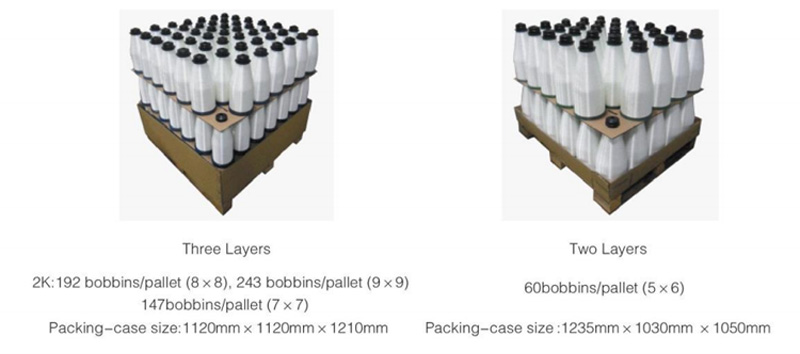

• Pallet Size

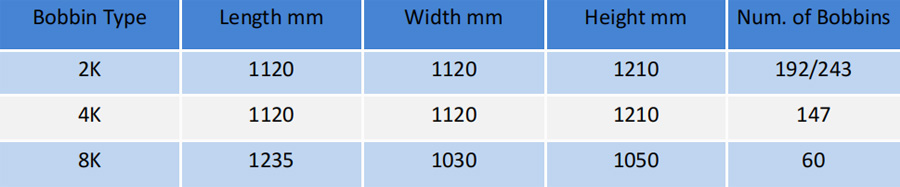

• 【Pallet Specification】



Application & Downstream Product:

Copper-clad Laminates (fiberglass based)

• Electronic Fiberglass Fabrics

  【Description】

  Electronic fiberglass fabrics is plain weaved on air-jet looms by intersecting warp and weft, the fabric, surface is treated after 1st and 2nd de-sizing for designed electrical insulation properties, physical & chemical properties and processing performances of Copper-clad Laminates.



• 【Properties】

  ◎High strength, heat resistance, fire-retardant and insulation
  ◎High pressure strand spreading and easy for resin impregnation
  ◎Treated with silane coupling agent and excellent compatibility with resins

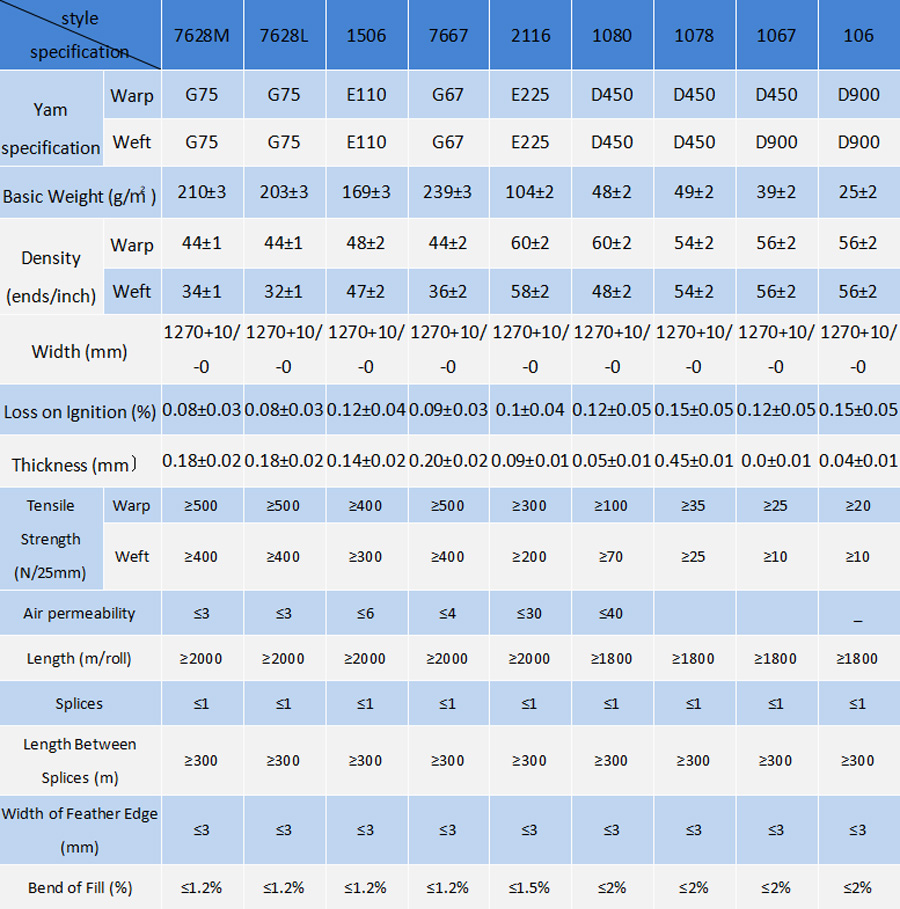

• 【Product Specification】

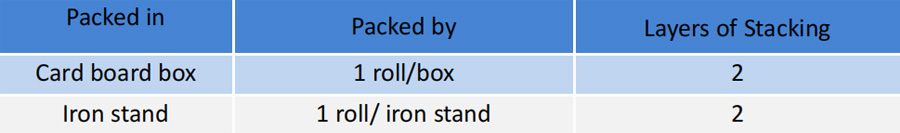

• 【Packaging】



• 【Notes】

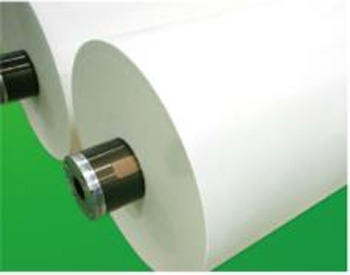

  1. The glass yarn fabric is warped tightly and trimly onto a card board tube (I.D Φ 76mm), sealed in a PE bag and put into an iron stand, or a carton on a pallet for easy lifting.
  2. Labeling Information:
  Name of Manufacturer;
  Product & Finish Code, Grade;
  Roll length & Width, Net Weight, Basic Weight and Slices;
  Manufacturing Date & Lot Number;
