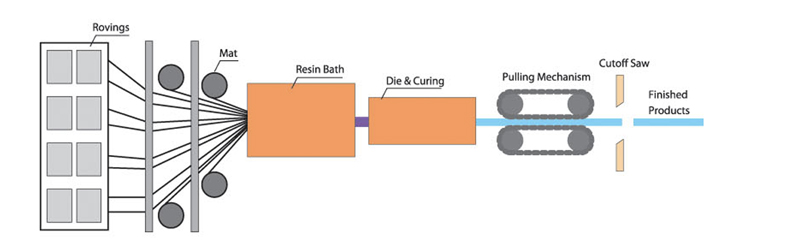

Pultrusion Process

• The rovings, mats or other fabrics are pulled through a resin impregnation bath and then into a heated die using a continuous pulling device. The final products is formed under high temperature and high pressure conditions.

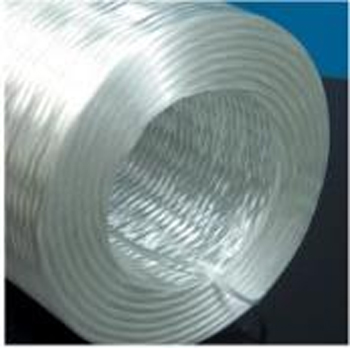

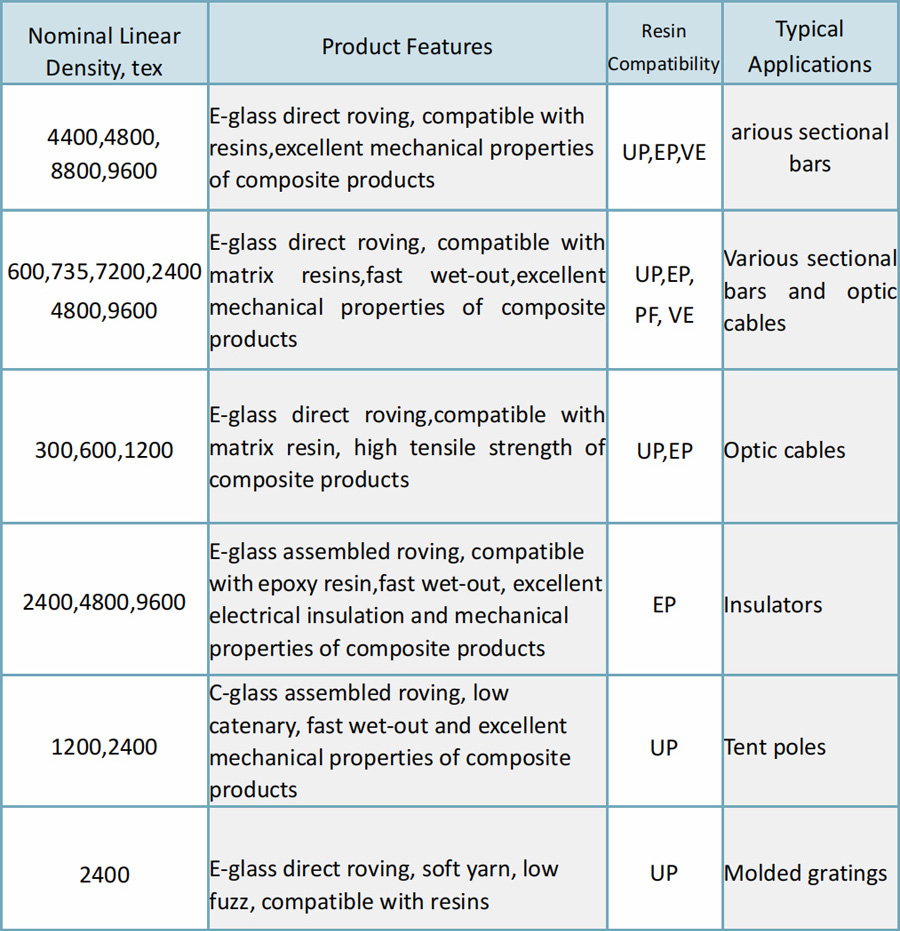

• Rovings for Pultrusion

  Rovings for Pultrusion are compatible with UP, EP. VE and PF resins and widely used in building & construction, telecommunication and insulation industries.


•

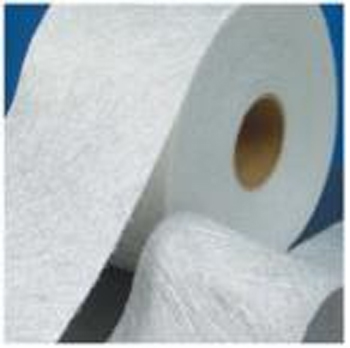

• Knitted Mat

  【Description】

  Knitted mat is composed of E-glass fiber chopped in specified length, randomly dispersed &stitched together by polyester yarn,and it is compatible with UP & EP resins.



• 【Properties】

  ◎Free of any binder
  ◎Even thickness
  ◎Fast wet-out
  ◎Excellent isotropy of properties
  ◎Good molding property

  【Identification of Product Code】

  Eg. EMK 450-1500
  E: E-glass
  MK: Knitted Mat
  450: Area Weight(g/㎡)
  1500: Width(mm)

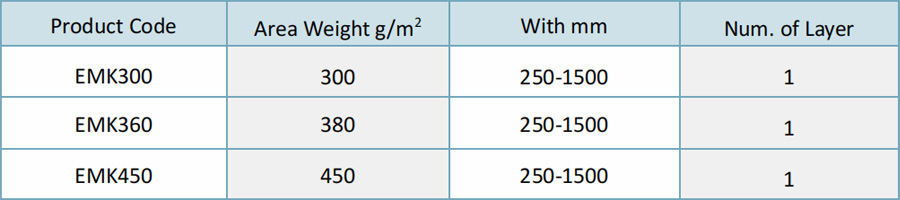

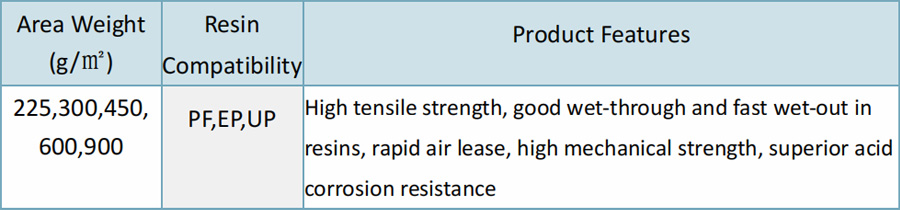

• 【Products】

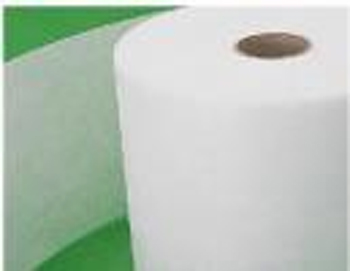

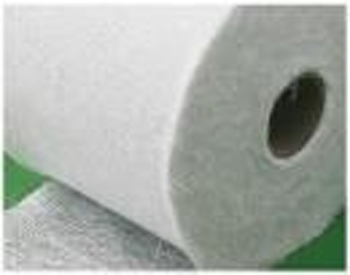

• Surface Mat

  【Description】

  Surface mat is used in the interior & exterior surface laminates of composites, to improve the chemical corrosion resistance, anti-leakage, laminate strength, appearance and extend the service life.



• 【Properties】

  ◎Even distribution of fiber
  ◎Smooth and soft surface
  ◎Fast wet-out
  ◎Excellent molding property

  【Identification of Product Code】

  Eg. AEMS-30-1000
  A: Taishan
  E: E-glass
  MS: Surface Mat
  30:Area Weight (g/㎡)
  1000: Width (mm)

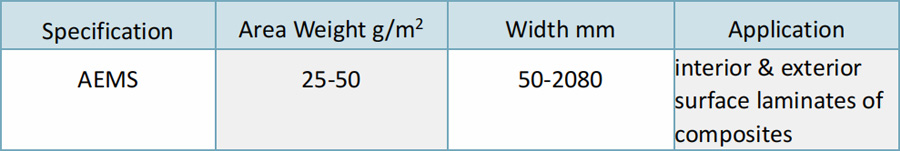

• 【Products】

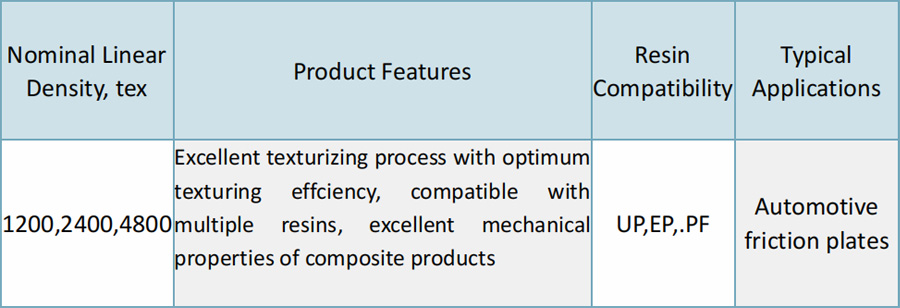

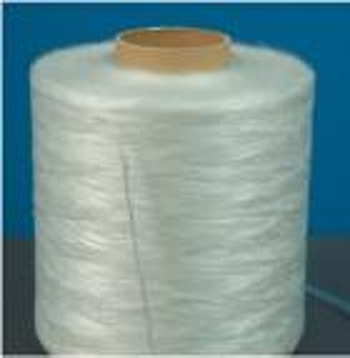

• Texturized Roving

  Texturized Roving is compatible with PF, EP and UP resins. it features texturizing uniformity and high absorbability


•

• Powder Chopped Strand Mat

  Powder Chapped Strand Mat is made of randomly distributed chopped strands held together by a powder binder. It is compatible with UP, VE, EP and PF resins. The roll width ranges from 50mm to 3,120mm.


•

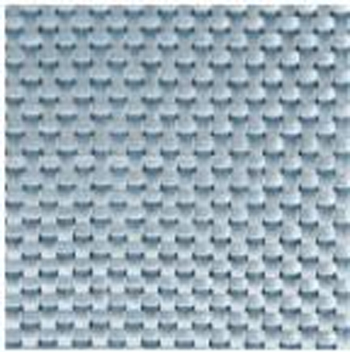

• Woven Roving

  Woven Roving is a bi-directional fabric made by weaving direct roving. Woven Roving is compatible with UP, VE, EP and PF. 200g/㎡ 2 ~1,600 g/㎡ 2. Other specifications are also available on customer request.



End-Use Markets





(Sports and Leisure/Consumer Goods and Business Equipment/Infrastructure/Automotive/Aerospace, Military, Defense and Security/Electrical and Electronics)




•
