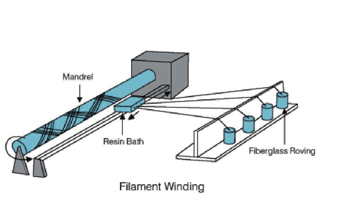

Filament Winding

Resin-impregnated continuous strands (woven roving, mat, or impregnated roving) are wound onto a mandrel in specific patterns and then cured to form the finished products. it includes discontinuous filament winding and continuous filament winding.

Fiberglass Products for Filament Winding

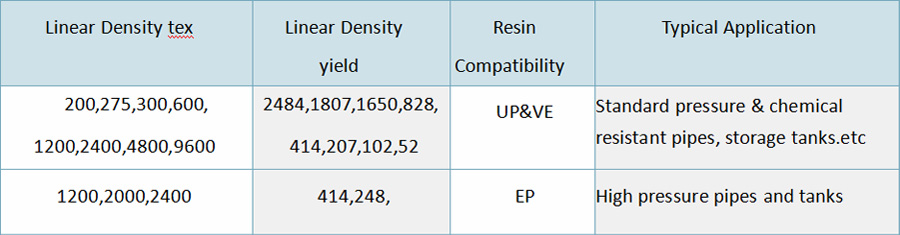

• Direct Roving for Filament Winding

  An intermediate molding process where fiberglass reinforcements (roving or fabrics) and resins are impregnated evenly and partially cured as pre-formed materials, which can be directly processed tor final products without adding more resin.



• 【Propertioes】

  ◎Silane-based sizing
  ◎Even tension and no free loops
  ◎High abrasion resistance and low fuzz
  ◎Consistent linear density and high filament tensile strength
  ◎Excellent compatibility with resins.
  ◎rapid wet-out and complete impregnation
  ◎Providing composites with excellent mechanical strength



• [Products]

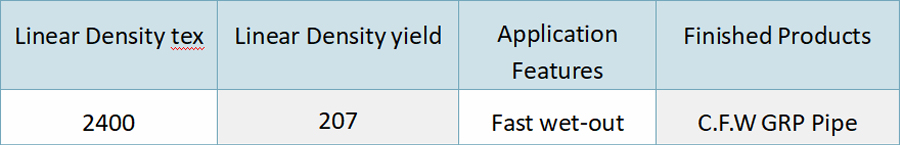

• Chop Roving

  [Description]




  Chop roving for pipes is coaled with silane-based sizing, compatible with UP, VE resins and applicable lor producing GRP pipe. It is available with E-glass & TCR glass

• 【Properties】




  ◎Good chop-ability and dispersion ◎Low static & fuzz ◎Excellent mechanical properties of pipes



• [Products]

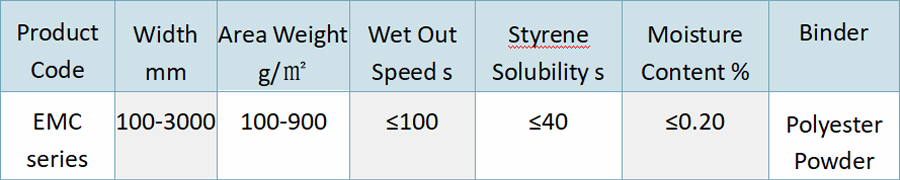

• Chopped Strand Mat

  [Description]





  Chopped Strand Mat is made of chopped fiber in specified length, randomly & evenly distributed on conveyor, bonded together by polyester powder binder (or emulsion binder) and cut into certain widths and lengths after heat forming. It is compatible with UP and VE resins.

• 【Properties】

  ◎Even area weight
  ◎Fast wet out and low resin consumption
  ◎Medium rigidity and optimum



• 【Products】

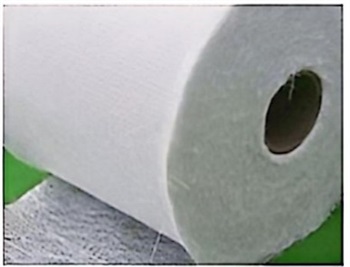

• Surface Mat

  [Description]





  Surface mat is used in the interior & exterior surface laminates of pipes & tanks, to improve the chemical corrosion resistance,anti-leakage, laminate strength, appearance and extend the service life.

• 【Properties】

  ◎Even distribution of fiber
  ◎Smooth and soft surface
  ◎Fast wet-out

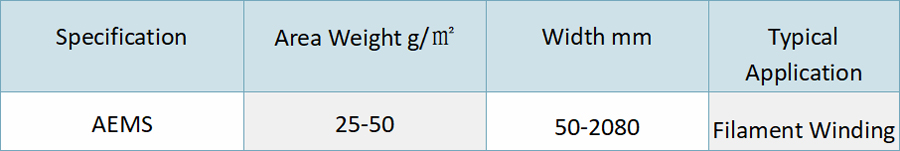

• 【Products】

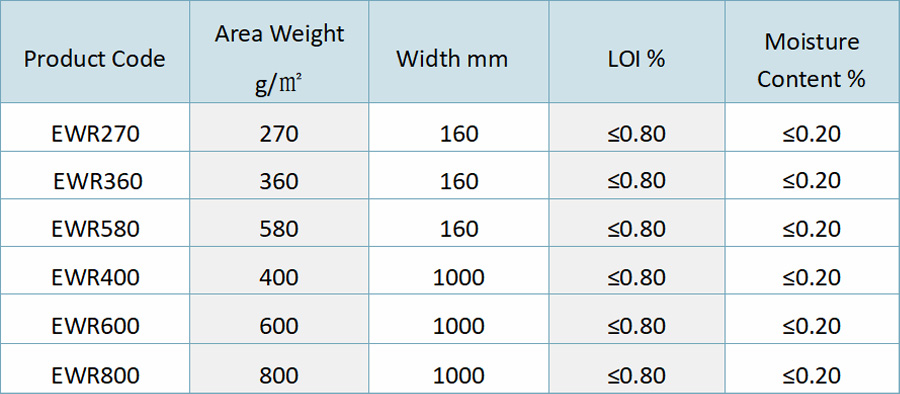

• Woven Roving

  [Description]





  Woven roving is made on looms by weaving direct roving into fabrics, it gives bi-directional (0 /90) reinforcement and is compatible with UP, VE & EP resins.

• 【Properties】

  ◎High mechanical strength of finished products
  ◎Even area weight
  ◎Fast wet-out
  ◎Flexible inputs of warp & weft



• 【Product】

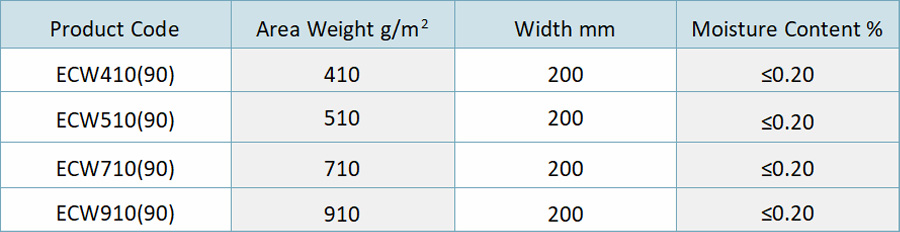

• Axial Tape

  [Description]





  Axial tape is produced by weaving looms, mainly used to increase axial strength of laminates and compatible with UP & VE resins。

• 【Properties】

  ◎High axial strength    ◎Even area weight    ◎Fast wet-out    ◎Solid fabric construction and easy application

• 【Product】

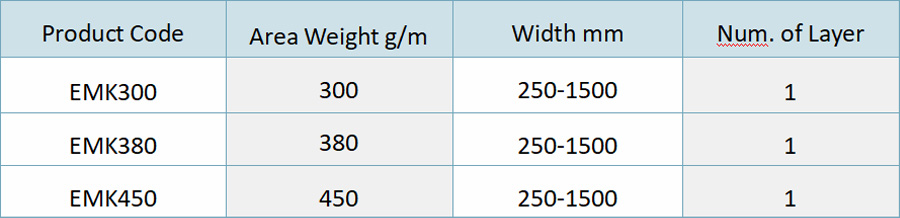

• Knitted Mat

  【Description】





  Knitted mat is composed of E-glass fiber chopped in specified length, randomly dispersed & stitched together by polyester yarn, and it is compatible with UP & EP resins.

• 【Properties】

  ◎Free of any binder
  ◎Even thickness
  ◎Fast wet-out
  ◎Excellent Isotropy of properties
  ◎Good molding property



• 【Products】
